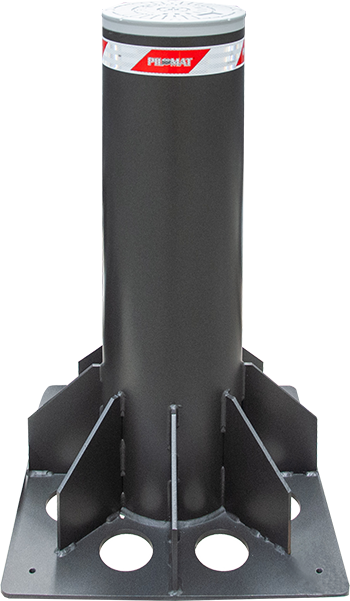

275/M30FB 1200F

Fixed bollards with reinforced basement

Model of the FB Series, consisting of high-security fixed bollards equipped with a reinforced foundation for protection against trucks up to 7,500 kg.

The 275/M30FB 1200F bollard is one of the most resilient fixed solutions in the Pilomat range. Thanks to its reinforced structure, which reaches impact resistance levels up to 1,200,000 joules, this bollard is the ideal choice for securing sensitive areas. With a height of 1200 mm, it stands out as a highly visible and imposing element, ensuring a strong deterrent effect. This model is also available with a welded flat-head top.

Technical data
Dimensions

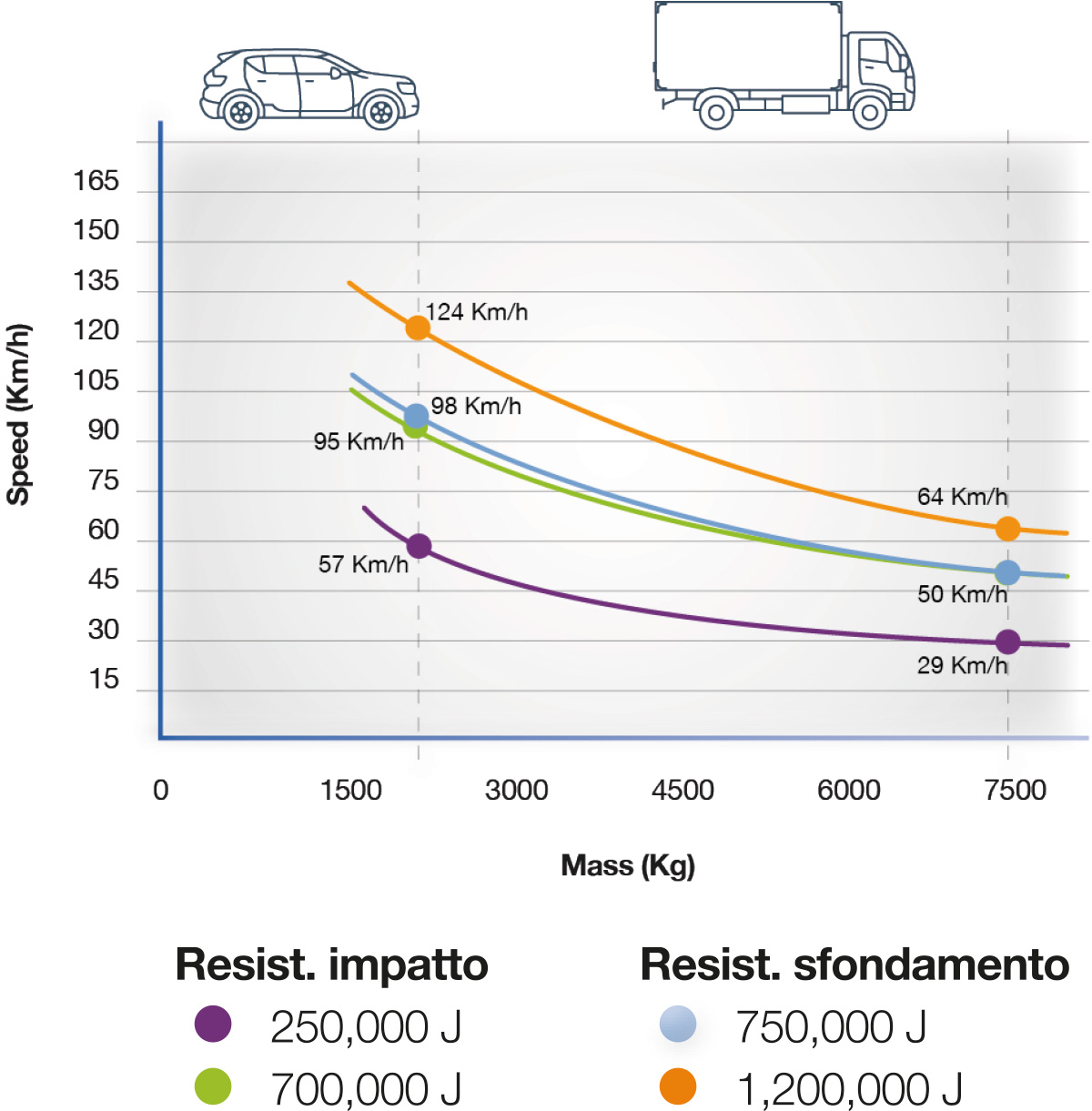

Crash test
Datasheet

Certifications

IWA 14-1
PAS68

Compliance

ASTM

Application areas

Pedestrian area protection

Access control for residential and corporate driveways

Storefront protection

Protection of sensitive or high-security areas

Restricted-area boundary control

Theft protection

Standard configuration

Dissuasore
Dispositivo per il controllo degli accessi veicolari con basamento rinforzato in ferro verniciato color antracite

Customizations

A wide range of accessories makes it possible to customize the bollard to meet any aesthetic, functional, or security requirement.

Finishes
Safety
Design

Technical data

Cylinder material	S355JR normal steel - X5CrNi 18-10 (AISI 304) - X5CrNiMo 17-12-2 (AISI 316) stainless steel
Cylinder diameter	273mm
Cylinder height	1200mm
Cylinder thickness	16mm
Cylinder normal steel finish	Anti-corrosion treatment - grey anthracite standard painting
Cylinder stainless steel finish	Grey anthracite standard painting or brushing
Reflecting adhesive strip	Standard - height 55mm
Connection line for LED lighting strips	Standard 10m (max 80m)
Protection class	IP 67
Impact resistance	700.000 J
Breakout resistance	1.200.000 J
Certified to	PAS68, IWA 14-1, ASTM M30 (K4)
In compliance with	ASTM M40 (K8)
