275/K12FB 900F

Fixed bollards with reinforced basement

Model of the FB Series, consisting of high-security fixed bollards equipped with a reinforced foundation for protection against trucks up to 7,500 kg.

The 275/K12 FB 900 F bollard combines maximum protection with a reduced visual impact. Certified ASTM, PAS68, and IWA14 at 80 km/h, it is one of the highest-performing fixed bollards in the Pilomat range. With a height of 900 mm, this model is less intrusive than the 1200 mm version, offering a smaller visual footprint while still guaranteeing exceptional resistance. Available with a welded flat-head top and a replaceable stainless steel sleeve to extend product durability and simplify any maintenance or replacement needs.

Technical data
Dimensions

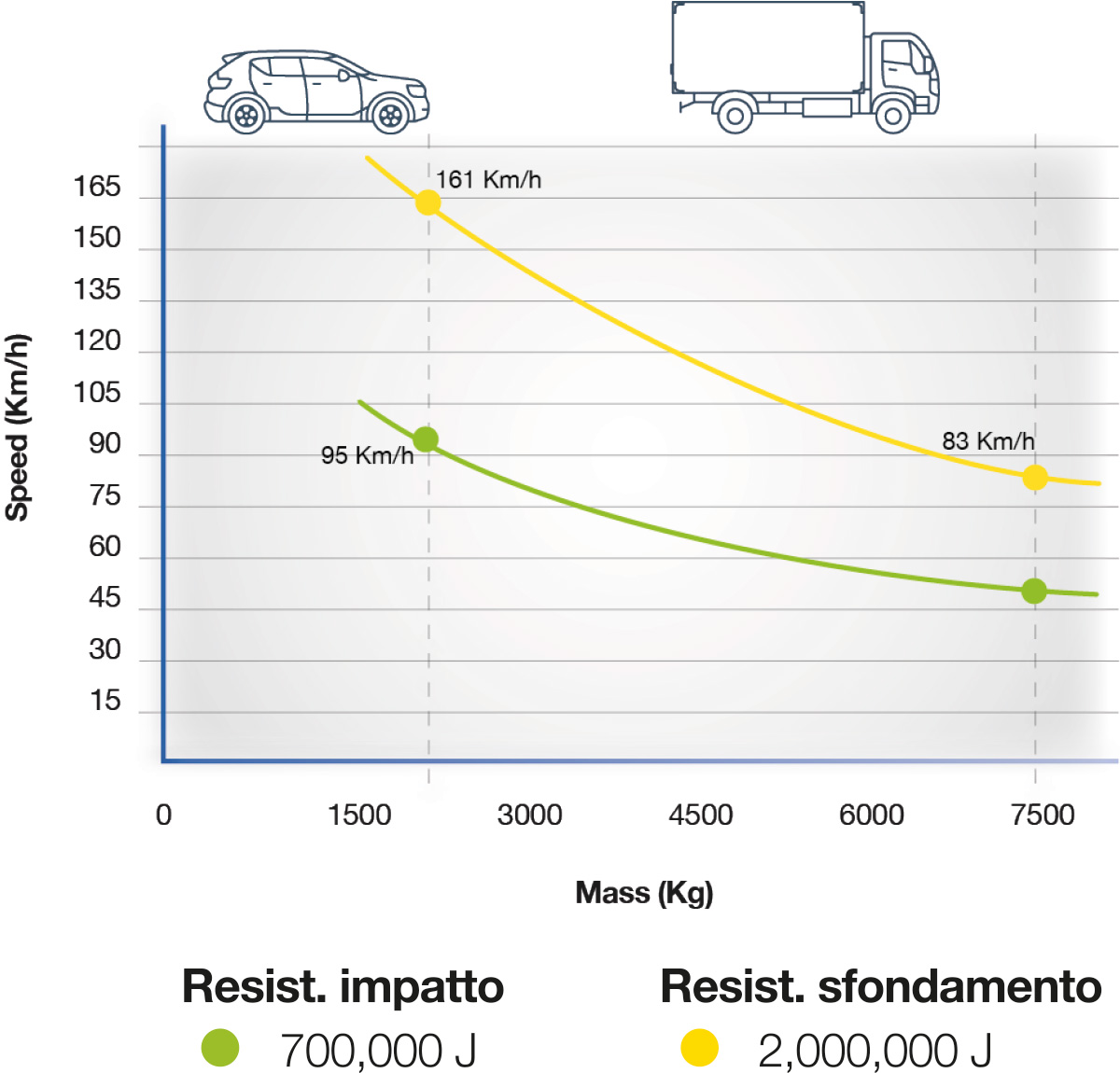

Crash test
Datasheet

Certifications

ASTM
IWA 14-1
PAS68

Application areas

Pedestrian area protection

Access control for residential and corporate driveways

Storefront protection

Protection of sensitive or high-security areas

Restricted-area boundary control

Theft protection

Standard configuration

Dissuasore
Dispositivo per il controllo degli accessi veicolari con basamento rinforzato in ferro verniciato color antracite

Customizations

A wide range of accessories makes it possible to customize the bollard to meet any aesthetic, functional, or security requirement.

Finishes
Safety
Design

Technical data

Cylinder material	S355JR normal steel - X5CrNi 18-10 (AISI 304) - X5CrNiMo 17-12-2 (AISI 316) stainless steel
Cylinder diameter	271mm
Cylinder height	900mm
Cylinder thickness	23mm
Cylinder normal steel finish	Anti-corrosion treatment - grey anthracite standard painting
Cylinder stainless steel finish	Grey anthracite standard painting or brushing
Reflecting adhesive strip	Standard - height 55mm
Connection line for LED lighting strips	Standard 10m (max 80m)
Protection class	IP 67
Impact resistance	700.000 J
Breakout resistance	2.000.000 J
Certified to	PAS68, IWA 14-1, ASTM M50 (K12)
